·How Curved LM Guides Work？

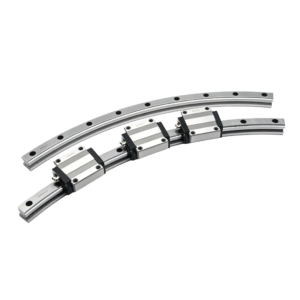

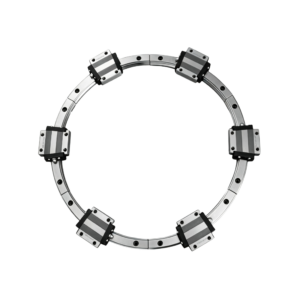

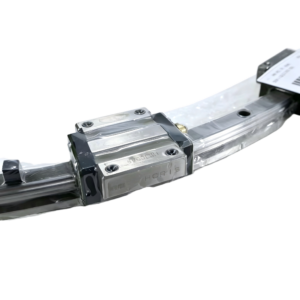

THK Curved LM Guides are engineered to provide smooth, accurate motion along circular or curved paths.
Unlike conventional linear guides, the rail is manufactured with a defined radius, allowing the LM block to travel continuously around an arc while maintaining high rigidity, precision, and stability.
This design makes them ideal for rotary automation systems and precision positioning applications.

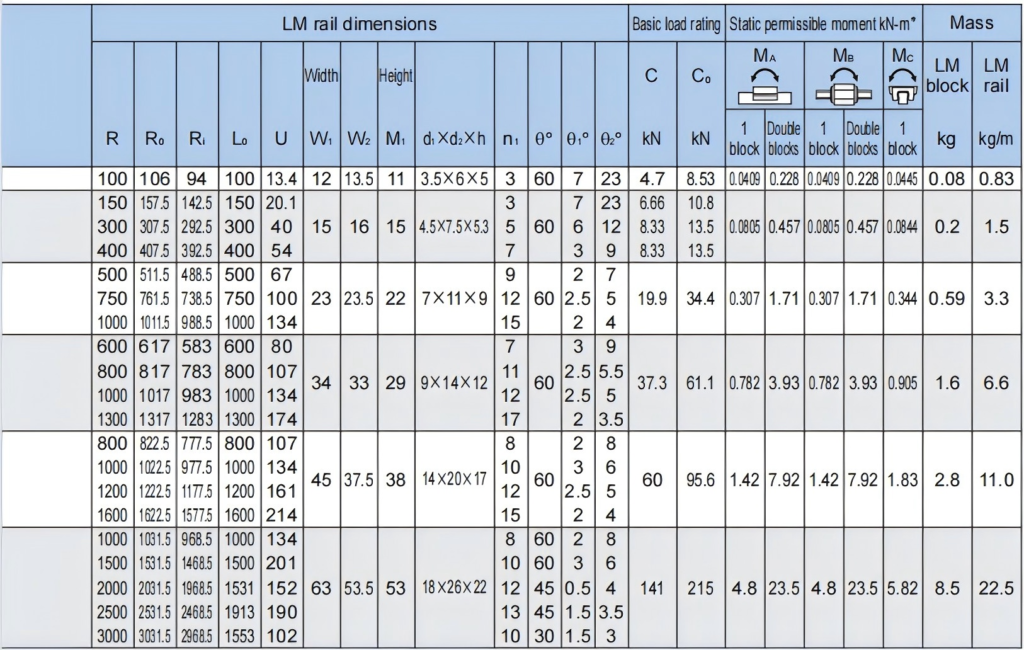

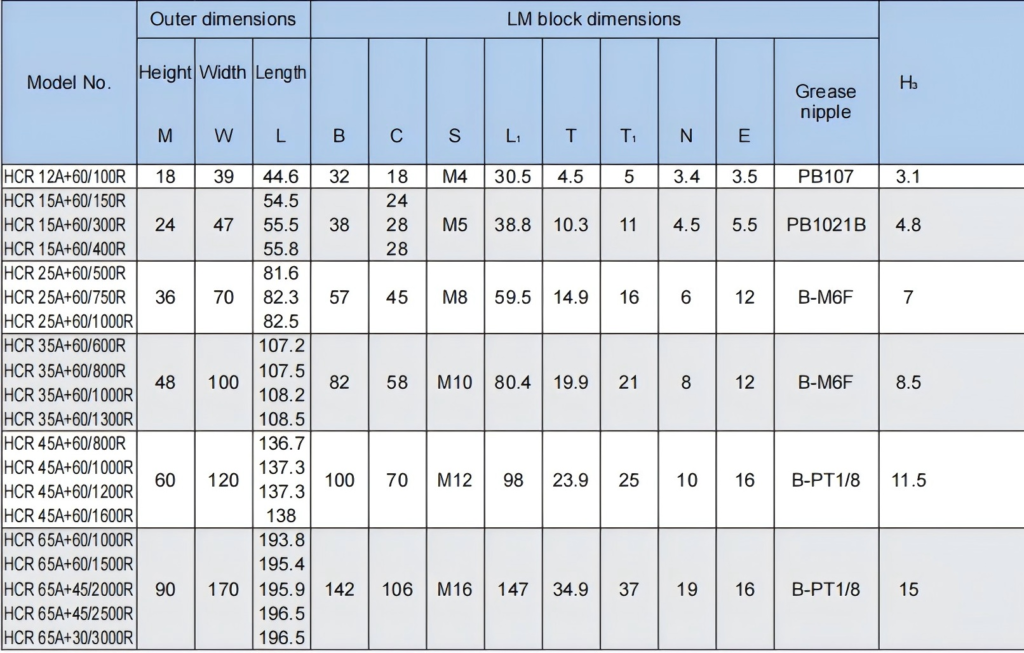

·Technical Drawings
·FAQ
What is the difference between a curved LM guide and a standard linear guide?
Curved LM guides are designed for circular motion, while standard linear guides are intended for straight-line movement.
Which industries commonly use curved LM guides?
Semiconductor, automation, inspection equipment, medical devices and rotary machinery.
How do I choose the correct HCR model?
Selection depends on the required radius, load capacity, installation space and operating conditions. Our team can help you choose the most suitable model based on your application.
Are replacement blocks available?
Yes. We supply original THK components and compatible replacement solutions.
·How to Select the Right Curved LM Guide？
-Determine the required guide radius.
-Confirm the load capacity and operating conditions.
-Select the appropriate rail size.
-Verify installation dimensions.
-Contact our engineering team for customized solutions.
